LUMILAS 70 are the mechanism that allows to direct the slats from 70 mm in the shutters in aluminum.
Realized in extruded aluminium, black elettro-colour, can be supplied with a lever-rotation.
The shape of the profile and the slat-holder have been studied specially to keep out light completely. LUMILAS 70 is equipped whit accessory for rapid adjustment fitting slats.
Realized in extruded aluminium, black elettro-colour, can be supplied with a lever-rotation.
The shape of the profile and the slat-holder have been studied specially to keep out light completely. LUMILAS 70 is equipped whit accessory for rapid adjustment fitting slats.
TECHNICAL DETAILS
| LUMILAS 70MR | ||
|---|---|---|
| PRODUCT DESCRIPTION | Turning louvers for aluminium. 70 mm drop-shaped slats. 35 mm top/bottom extensions with adjustable slat-holders. Lever-rotation. |
|
| MATERIAL | Profile in extruded aluminium and slat-holders in NYLON. | |
| TREATMENTS | Oxidation black elettro-colour. | |
| PROFILE DIMENSIONS | 24.5 mm 32 mm 34,8 mm |
|
| Download PDF |  |
|
LUMILAS 70MR assures:
- - traditional shutter reproduction
- - easy fitting by reverse-rotation accessory of slat-holders
- - snap-shutting of slats
- - quality of product checked on each piece by our inward supervision.
- - rapid adjustment

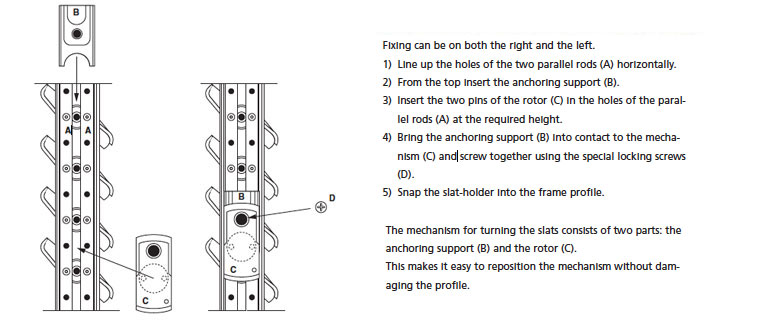

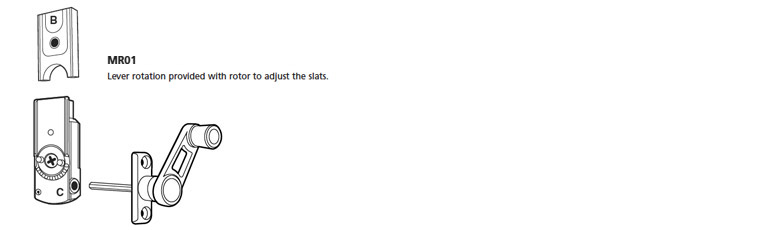

Instructions of mechanism fixing for turning the slats.

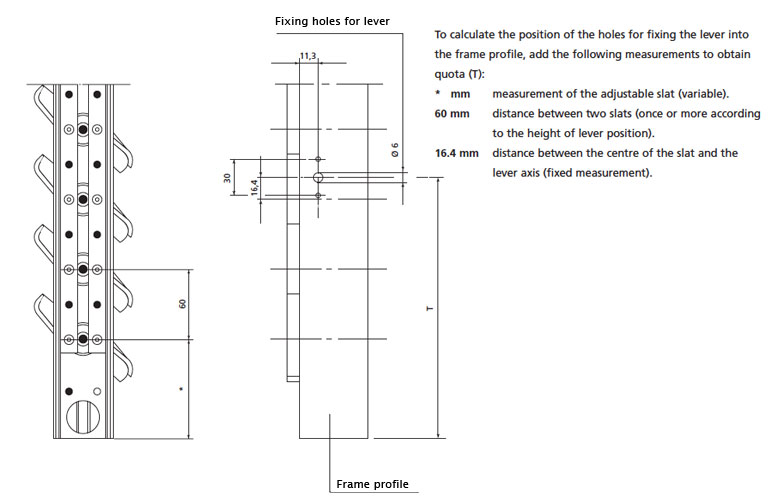

To obtain the hole position of the lever into the frame profile.
PROFILES
 |
 |
| For chambers 24 and 25 mm | Section profile of the slat |
Dimension LUMILAS 70MR
| ARTICLE | HIGH mm | n. SLATS | n. CONTROLS |
|---|---|---|---|
| L06.70.MR | 450 | 6 | 1 |
| L07.70.MR | 510 | 7 | 1 |
| L08.70.MR | 570 | 8 | 1 |
| L09.70.MR | 630 | 9 | 1 |
| L10.70.MR | 690 | 10 | 1 |
| L11.70.MR | 750 | 11 | 1 |
| L12.70.MR | 810 | 12 | 1 |
| L13.70.MR | 870 | 13 | 1 |
| L14.70.MR | 930 | 14 | 1 |
| L15.70.MR | 990 | 15 | 1 |
| L16.70.MR | 1050 | 16 | 1 |
| L17.70.MR | 1110 | 17 | 1 |
| L18.70.MR | 1170 | 18 | 1 |
| L19.70.MR | 1230 | 19 | 1 |
| L20.70.MR | 1290 | 20 | 1 |
| L21.70.MR | 1350 | 21 | 1 |
| L22.70.MR | 1410 | 22 | 2 |
| L23.70.MR | 1470 | 23 | 2 |
| L24.70.MR | 1530 | 24 | 2 |
| L25.70.MR | 1590 | 25 | 2 |
| L26.70.MR | 1650 | 26 | 2 |
| L27.70.MR | 1710 | 27 | 2 |
| L28.70.MR | 1770 | 28 | 2 |
| L29.70.MR | 1830 | 29 | 2 |
| L30.70.MR | 1890 | 30 | 2 |
| L31.70.MR | 1950 | 31 | 2 |
| L32.70.MR | 2010 | 32 | 2 |
